RO Series. 1.3 N·m rated, 4.5 N·m peak, Ф92.6 mm, 352 g, 48 V.
US$129.00
1.3 N·m rated and 4.5 N·m peak from a Ф92.6 x 26.4 mm, 352 g frame, on 48 V. Kv 105, 4000 RPM rated and 4800 RPM no-load. CubeMars lists it for cobot arms and exoskeletons.

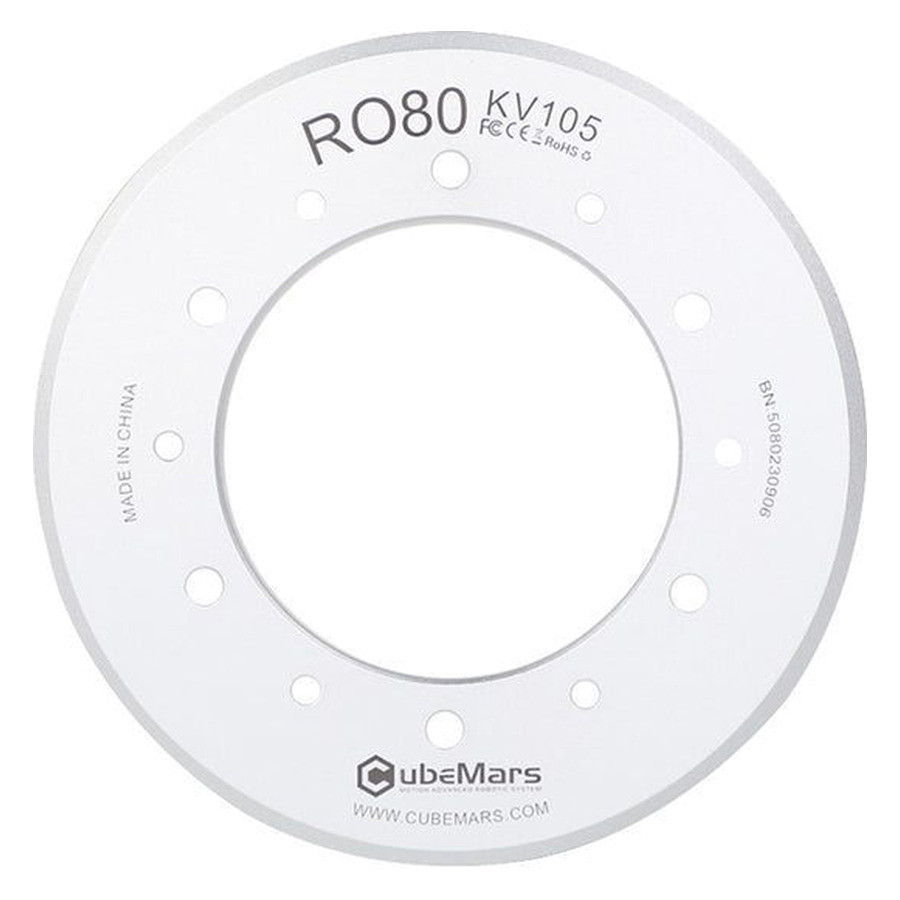

This is the standard, with hall configuration.
The CubeMars RO series brushless DC outer rotor torque motor is introduced to meet diverse market demands, catering to applications in exoskeleton robotics, collaborative robotic arms, as well as medical and aviation fields.
Import duty on US orders is on us. Freight is charged once per order, not per item, and shipping is free on orders of US$200 or more — see the rates.
| Rated Torque (N·m) | 1.3 |
|---|---|
| OD (mm) | 92.6 |
| Weight (g) | 352 |
| Peak Torque (N·m) | 4.5 |
| Rated Voltage (V) | 48 |
| Rated Speed (RPM) | 4000 |
| No-Load Speed (RPM) | 4800 |
| Rated Current (A) | 15 |
| Peak Current (A) | 55 |
| Maximum Torque Weight Ratio (N·m/kg) | 11.4 |
| Height (mm) | 26.4 |
| Kv (RPM/V) | 105 |
| Kt (N·m/A) | 0.087 |
| Ke (V/kRPM) | 9.07 |
| Phase to Phase Resistance (mΩ) | 120 |
| Phase to Phase Inductance (μH) | 103 |
| Inertia (g·cm²) | 2612 |
| Mechanical Time Constant (ms) | 2.95 |
| Electrical Time Constant (ms) | 0.86 |
| Pole Pairs | 21 |
| Winding Type | Delta |
| Operation Ambient Temperature | -20℃~50℃ |
| Hall Sensor | Yes |
| Temperature Sensor | Yes |
| Driving Way | FOC |
| Application | Cobot Arm, Exoskeleton |
