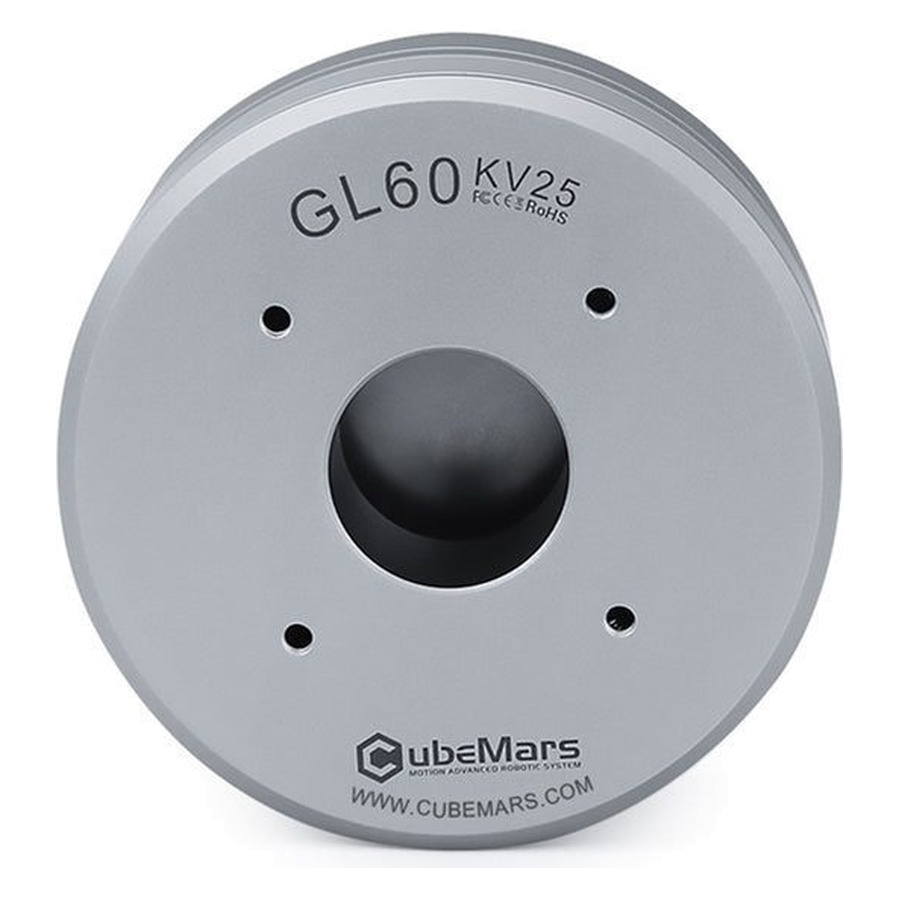

GL60 KV25 with encoder
GL Series. 600 mN·m rated, 1.75 N·m peak, Ф69 mm, 230 g, 24 V.
US$150.00
This is the with encoder configuration.
CubeMars' GL series brushless DC motors are specifically designed for gimbal systems, featuring characteristics such as a large hollow structure, low cogging torque, lightweight, compact size, and low energy consumption, providing a smooth experience for your gimbal equipment.
Encoder
Specifications
| Rated Torque (N·m) | 0.6 |
|---|---|
| OD (mm) | 69 |
| Weight (g) | 230 |
| Peak Torque (N·m) | 1.75 |
| Rated Voltage (V) | 24 |
| Rated Speed (RPM) | 310 |
| No-Load Speed (RPM) | 516 |
| Rated Current (A) | 1.35 |
| Peak Current (A) | 4 |
| Maximum Torque Weight Ratio (N·m/kg) | 7.61 |
| Height (mm) | 22.3 |
| Kv (RPM/V) | 25 |
| Kt (N·m/A) | 0.450 |
| Ke (V/kRPM) | 44.30 |
| Phase to Phase Resistance (mΩ) | 5500 |
| Phase to Phase Inductance (μH) | 2720 |
| Inertia (g·cm²) | 355 |
| Mechanical Time Constant (ms) | 0.96 |
| Electrical Time Constant (ms) | 0.49 |
| Pole Pairs | 14 |
| Winding Type | Star |
| Operation Ambient Temperature | -20℃~50℃ |
| Driving Way | FOC |
| Application | Gimbal, Radar |
