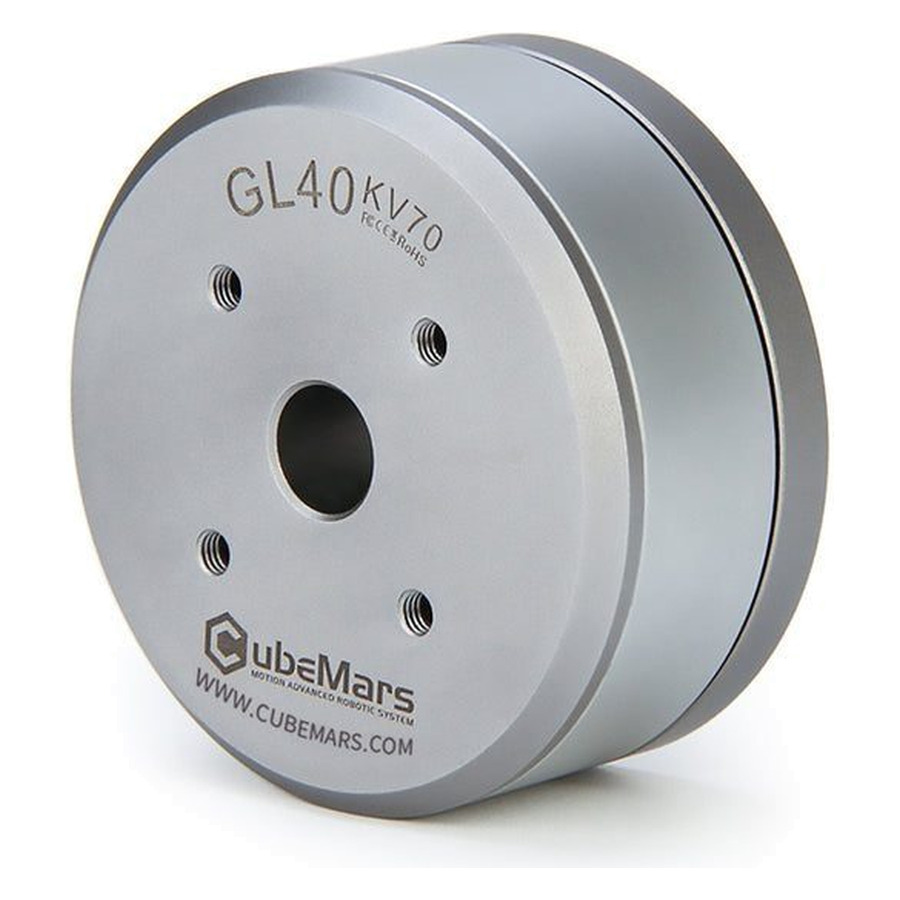

GL40 KV70 with encoder
GL Series. 250 mN·m rated, 500 mN·m peak, Ф46.5 mm, 107 g, 16 V.
US$110.00
This is the with encoder configuration.
CubeMars' GL series brushless DC motors are specifically designed for gimbal systems, featuring characteristics such as a large hollow structure, low cogging torque, lightweight, compact size, and low energy consumption, providing a smooth experience for your gimbal equipment.
Encoder
Specifications
| Rated Torque (N·m) | 0.25 |
|---|---|
| OD (mm) | 46.5 |
| Weight (g) | 107 |
| Peak Torque (N·m) | 0.5 |
| Rated Voltage (V) | 16 |
| Rated Speed (RPM) | 430 |
| No-Load Speed (RPM) | 1015 |
| Rated Current (A) | 1.62 |
| Peak Current (A) | 3.3 |
| Maximum Torque Weight Ratio (N·m/kg) | 4.67 |
| Height (mm) | 21.5 |
| Kv (RPM/V) | 70 |
| Kt (N·m/A) | 0.150 |
| Ke (V/kRPM) | 15.00 |
| Phase to Phase Resistance (mΩ) | 4500 |
| Phase to Phase Inductance (μH) | 1800 |
| Inertia (g·cm²) | 74 |
| Mechanical Time Constant (ms) | 1.48 |
| Electrical Time Constant (ms) | 0.40 |
| Pole Pairs | 14 |
| Winding Type | Star |
| Operation Ambient Temperature | -20℃~50℃ |
| Driving Way | FOC |
| Application | Gimbal, Radar |
