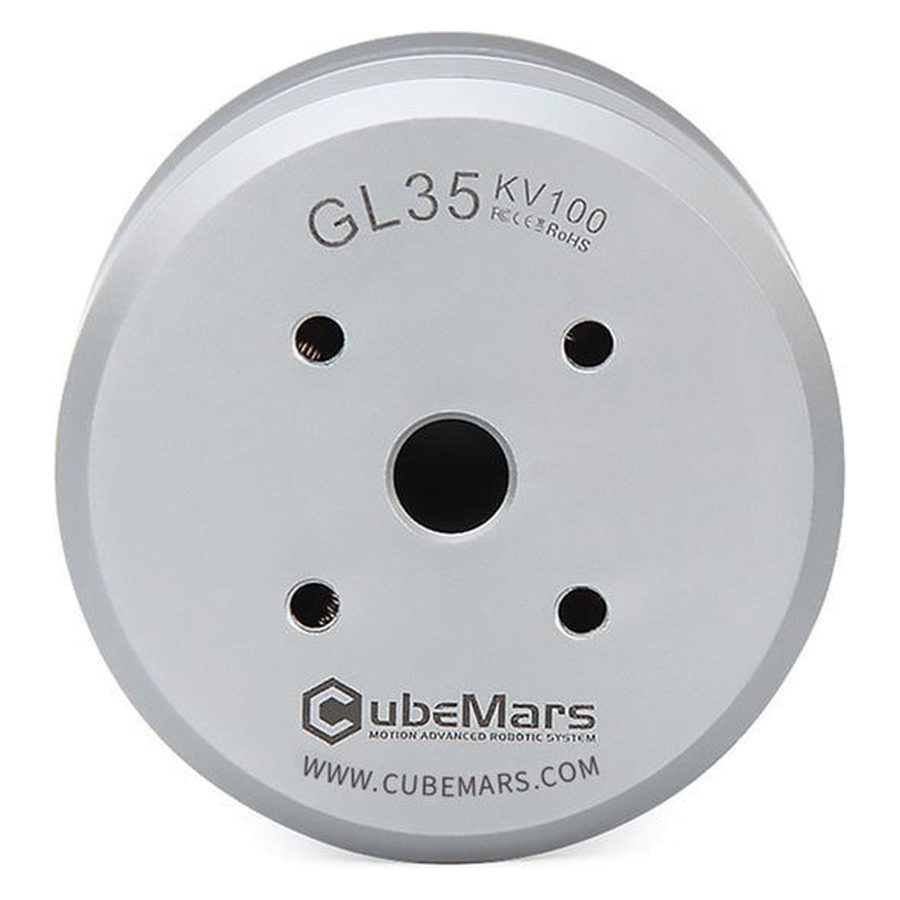

GL35 KV100 with encoder
GL Series. 150 mN·m rated, 460 mN·m peak, Ф41.8 mm, 90 g, 16 V.
US$90.00
This is the with encoder configuration.
CubeMars' GL series brushless DC motors are specifically designed for gimbal systems, featuring characteristics such as a large hollow structure, low cogging torque, lightweight, compact size, and low energy consumption, providing a smooth experience for your gimbal equipment.
Encoder
Specifications
| Rated Torque (N·m) | 0.15 |
|---|---|
| OD (mm) | 41.8 |
| Weight (g) | 90 |
| Peak Torque (N·m) | 0.46 |
| Rated Voltage (V) | 16 |
| Rated Speed (RPM) | 815 |
| No-Load Speed (RPM) | 1320 |
| Rated Current (A) | 1.3 |
| Peak Current (A) | 4 |
| Maximum Torque Weight Ratio (N·m/kg) | 5.11 |
| Height (mm) | 21 |
| Kv (RPM/V) | 100 |
| Kt (N·m/A) | 0.115 |
| Ke (V/kRPM) | 11.54 |
| Phase to Phase Resistance (mΩ) | 3600 |
| Phase to Phase Inductance (μH) | 2100 |
| Inertia (g·cm²) | 61 |
| Mechanical Time Constant (ms) | 1.66 |
| Electrical Time Constant (ms) | 0.58 |
| Pole Pairs | 7 |
| Winding Type | Star |
| Operation Ambient Temperature | -20℃~50℃ |
| Driving Way | FOC |
| Application | Gimbal, Radar |
