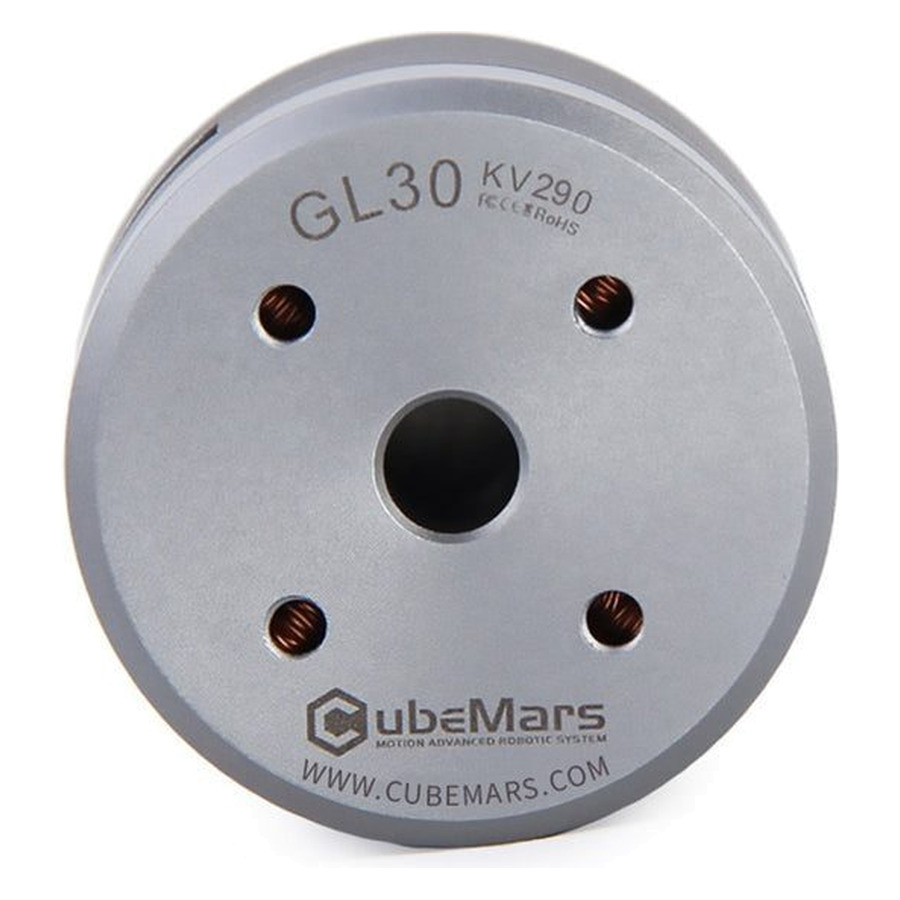

GL30 KV290 with encoder
GL Series. 80 mN·m rated, 280 mN·m peak, Ф34.5 mm, 41 g, 12 V.
US$85.00
This is the with encoder configuration.
CubeMars' GL series brushless DC motors are specifically designed for gimbal systems, featuring characteristics such as a large hollow structure, low cogging torque, lightweight, compact size, and low energy consumption, providing a smooth experience for your gimbal equipment.
Encoder
Specifications
| Rated Torque (N·m) | 0.08 |
|---|---|
| OD (mm) | 34.5 |
| Weight (g) | 41 |
| Peak Torque (N·m) | 0.28 |
| Rated Voltage (V) | 12 |
| Rated Speed (RPM) | 1990 |
| No-Load Speed (RPM) | 3060 |
| Rated Current (A) | 2.13 |
| Peak Current (A) | 7.4 |
| Maximum Torque Weight Ratio (N·m/kg) | 6.83 |
| Height (mm) | 15.7 |
| Kv (RPM/V) | 290 |
| Kt (N·m/A) | 0.038 |
| Ke (V/kRPM) | 3.73 |
| Phase to Phase Resistance (mΩ) | 1530 |
| Phase to Phase Inductance (μH) | 330 |
| Inertia (g·cm²) | 24.2 |
| Mechanical Time Constant (ms) | 2.56 |
| Electrical Time Constant (ms) | 0.22 |
| Pole Pairs | 7 |
| Winding Type | Star |
| Operation Ambient Temperature | -20℃~50℃ |
| Driving Way | FOC |
| Application | Gimbal, Radar |
